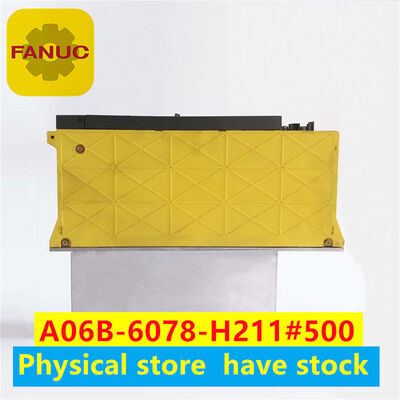

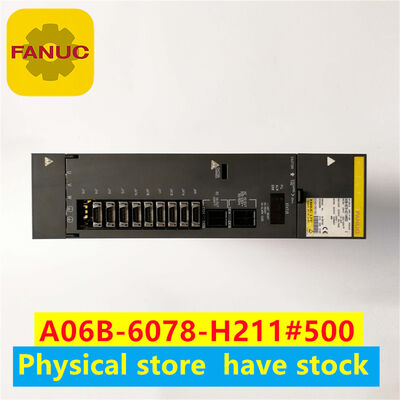

Fanuc A06B-6078-H211#500 Spindle Amplifier Module SPM-11 Alpha Series
At Huiqin CNC, we specialize in providing essential industrial automation components including drives, modules, and controllers for leading brands such as Fanuc, Mitsubishi, Allen-Bradley, Yaskawa, and Siemens. Our extensive inventory in Dongguan ensures rapid access to industrial automation parts throughout China.

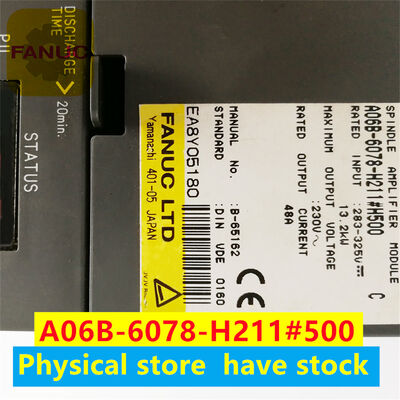

The Fanuc A06B-6078-H211#500 is a spindle amplifier module (SPM-11) from the Alpha series, engineered to drive spindle motors with precision in CNC and automation machinery. This module accepts DC input of 283-325V, rated at 13.2kW, and delivers maximum AC output of 230V at 48A, optimized for high-torque spindle operations in demanding industrial environments.
Technical Specifications
Input: DC 283-325V
Power Rating: 13.2 kW
Output: AC 230V, 48A
Dimensions: 150mm (W) × 300mm (H) × 200mm (D)
Weight: Approximately 6kg
Operating Temperature: 0°C to 55°C
Core Features
Advanced PWM control for smooth speed regulation and torque management
Built-in protection against overcurrent, overvoltage, and thermal anomalies
Diagnostic indicators for operational states (RDY, ALM, CNT)
Compact design suitable for vertical or wall-mounted installation
Internal ventilation system for heat management during intensive cycles
Compatibility & Applications
This spindle amplifier module integrates seamlessly with Fanuc Alpha spindle motors and CNC systems including Series 0i, 16i, 18i, 30i, and 31i. It enables precise spindle synchronization in multi-tool operations and excels in high-speed milling, turning centers, and precision grinding applications where reliable amplification enhances spindle efficiency and overall machine productivity.
Maintenance Recommendations
To ensure optimal performance and longevity, conduct regular inspections of electrical terminals for stability, monitor cooling mechanisms to prevent thermal buildup, and examine diagnostic outputs. Periodic ventilation cleaning and input power validation will help maximize operational reliability in demanding industrial environments.
