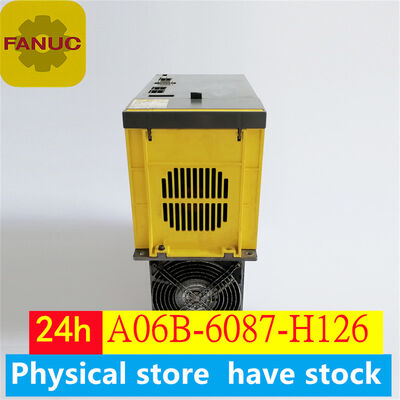

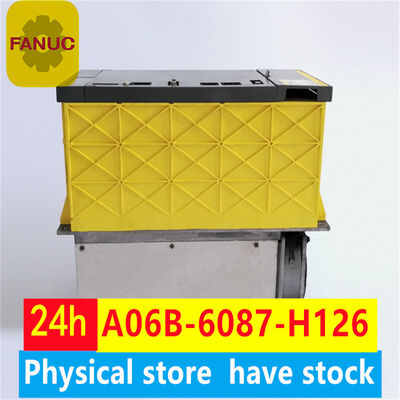

Fanuc A06B-6087-H126 Power Supply Module PSM-26 Alpha Series
The Fanuc A06B-6087-H126 Power Supply Module PSM-26 Alpha Series operates at 200-230V AC, delivering reliable DC power for industrial automation systems.
Product Overview
This high-output power supply module converts three-phase AC input (200-230 VAC, 50/60 Hz) into stable DC power for servo amplifiers in CNC and robotic systems. With a maximum current draw of approximately 108A at 200V, it delivers rated DC output of 283-325V and 30kW power capacity, making it ideal for large-scale, power-intensive applications.
Key Features
Efficient regenerative discharge for energy recycling and voltage stabilization
Comprehensive protection against overcurrent, undervoltage, and thermal issues
LED indicators for real-time status monitoring (RDY, ALM, CNT)
Robust construction: 150mm × 300mm × 200mm, approximately 7kg
Operating temperature range: 0°C to 55°C with integrated fan cooling
Secure mounting for control enclosures
Compatibility & Applications
Compatible with Fanuc Alpha servo amplifiers (SVM models) and CNC controllers including Series 0i, 16i, 18i, 30i, and 31i. Ideal for heavy-duty machining centers, automated forging lines, and precision extrusion processes requiring multi-axis synchronization and scalable power solutions.
Maintenance Guidelines
Ensure prolonged reliability through regular inspection of input/output connections, monitoring fan efficiency, checking protective circuits, cleaning ventilation channels, and verifying voltage parameters in demanding factory environments.
