| Brand Name: | fanuc |
| Model Number: | A860-0316-T101 |
| MOQ: | 1pcs |
| Price: | Chat Now |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/months |

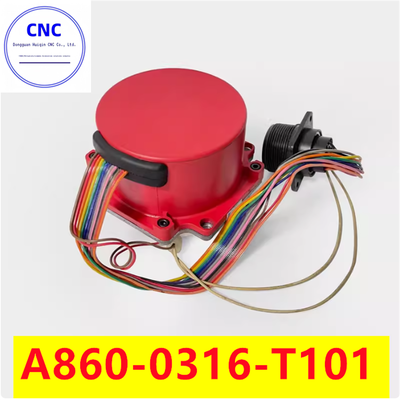

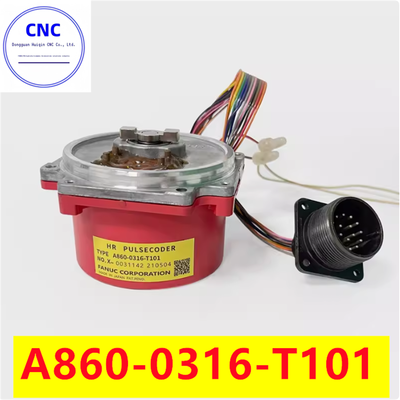

The Fanuc A860-0316-T101 is a high-resolution incremental pulse coder designed for advanced CNC systems. With 10,000 pulses per revolution, it delivers precise positional feedback for accurate motor control and reduced errors in industrial automation applications.
| Parameter | Value |
|---|---|
| Model | A860-0316-T101 |
| Type | Incremental High Resolution Pulse Coder |
| Resolution | 10000 Pulses per Revolution (PPR) |
| Compatibility | Fanuc S Series Servo Motors |
| Interface | Serial or Pulse Output |
| Voltage | 5V DC |
| Operating Temperature | -10°C to +70°C |
| Protection | IP65 (Dust and Water Resistant) |
| Dimensions | Compact (approx. 50mm diameter) |
| Weight | Approx. 0.5 kg |
| Manual Reference | Fanuc Encoder Manuals (e.g., B-65165) |
