A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A

A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A

A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A

Brand Name: A860-0309-T302
Model Number: A860-0309-T302
MOQ: 10
Price: $100
Detail Information
Product Description
Detail Information
Place of Origin:
Japan
Rated Current:
10A
Rated Voltage:
220V
Resolution:
20000 PPR
Protection Rating:
IP67
Housing Material:
Aluminum Alloy
Mounting Type:
Square Flange
Operating Voltage:
5V
Encoder Type:
Pulse Coder
Feedback Type:
Nanometer-level
Compatibility:
Fanuc Series 800
Alarm Prevention:
350/301 Alarms
Application Environment:
Harsh Machining
Signal Stability:
Stable Encoder Signals
Accuracy Level:
High Precision
Speed Capability:
High Speed
Highlight:

Fanuc spindle encoder high resolution

,

CNC pulse coder servo encoder

,

Fanuc encoder IP67 220V

Product Description
Fanuc A860-0309-T302 High Resolution Spindle Encoder
Product Overview
Original FANUC A860-0309-T302 spindle encoder with ultra-high 20,000 PPR resolution, delivering nanometer-level position feedback for precision CNC machining applications.
Key Features
  • 20,000 pulses per revolution - 10x more accurate than standard encoders
  • IP67-rated protection against coolant, cutting oil, and dust ingress
  • Durable aluminum alloy housing for harsh machining environments
  • Enables mirror-finish machining and complex surface cutting
  • Reduces risk of Fanuc 350/301 alarms caused by contamination
  • Square flange mount design for easy installation
  • 5V operating voltage with anti-interference capabilities
Applications
Ideal for CNC machine tool spindles, machining centers, industrial automation systems, and high-precision manufacturing equipment requiring exceptional position feedback accuracy.
Technical Specifications
Model A860-0309-T302
Resolution 20,000 PPR (Pulses Per Revolution)
Protection Rating IP67
Voltage 5V
Mounting Square Flange
Compatibility Fanuc Series 800, Fanuc Alpha Spindle

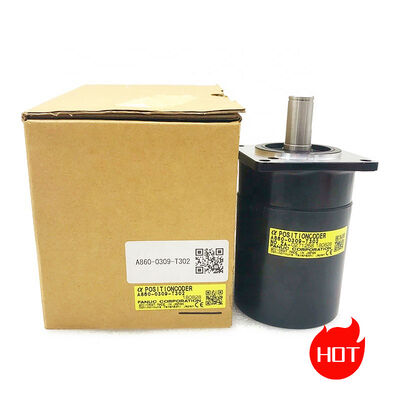

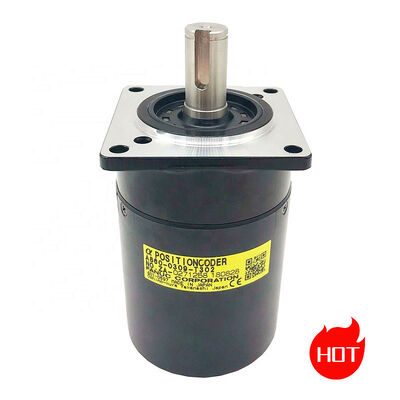

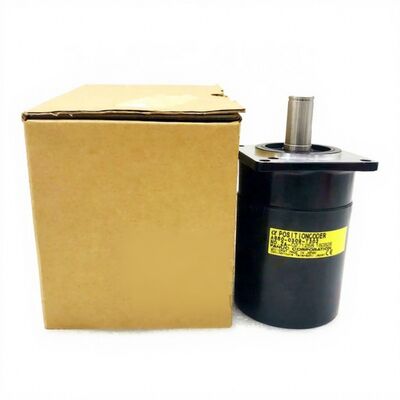

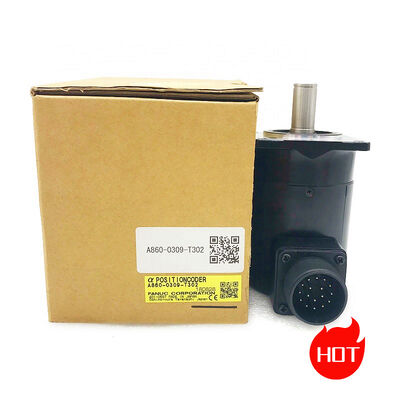

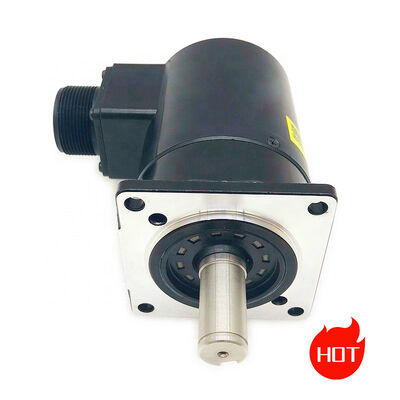

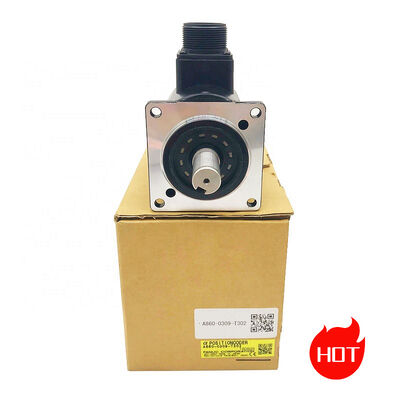

Product Images
A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 0 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 1 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 2 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 3 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 4 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 5
Compatible Models
A860-0309-T302: Spindle encoder, 20,000-line high resolution, IP67 protection
A290-0561-V531: 2000P ABS absolute encoder for servo motors
A290-0561-V565: 20,000-line high-resolution serial encoder
A860-0301-T002: Incremental 2,500-pulse encoder, 5V for feed axes
About Huiqin CNC
Huiqin CNC specializes in supplying reliable industrial automation components, including drives, modules, controllers, and PCBs. Our large Dongguan warehouse ensures fast availability across China.
Quality Assurance
Every product undergoes strict functional and visual inspection. Used parts include a 3-month warranty; new parts carry 12-month quality assurance.
Facility Images
A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 6 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 7 A860-0309-T302 Fanuc Spindle Encoder High Resolution 20000 PPR IP67 CNC Pulse Coder Servo Encoder 220V 10A 8
Contact Information
For technical support, compatibility verification, or immediate stock confirmation, please contact our support team.
