Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A

Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A

Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A

Brand Name: A290-0561-V565
Model Number: A290-0561-V565
MOQ: 10
Price: $100
Detail Information
Product Description
Detail Information
Place of Origin:
Japan
Rated Current:
10A
Rated Voltage:
220V
Resolution:
20000 Lines/rev
Counts Per Revolution:
80000
Max Speed:
3000 RPM
Output Frequency:
4 MHz
Signal Output:
Serial
Compatible Model:
A860-0310-T021
Encoder Type:
Serial Pulse Coder
Mounting Type:
Standard
Application:
CNC Machine Tools
Precision Level:
Ultra-high
Dynamic Response:
High
Model Number:
A290-0561-V565
Series:
A290 Series
Highlight:

Fanuc high resolution encoder A290-0561-V565

,

Fanuc serial pulse coder CNC machine

,

Fanuc 20000 line encoder 220V

Product Description

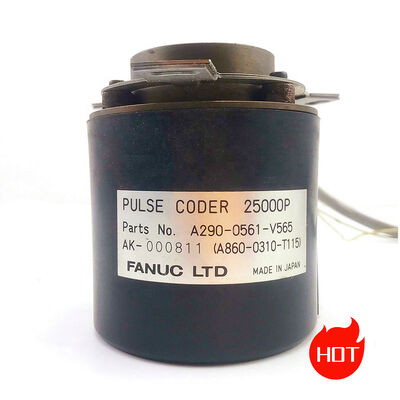

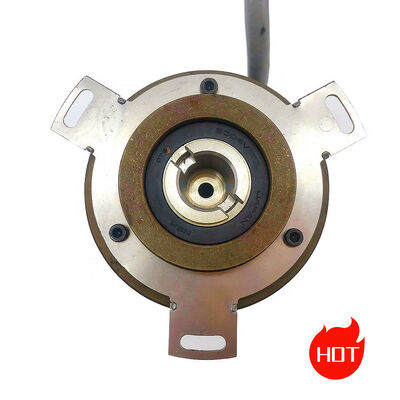

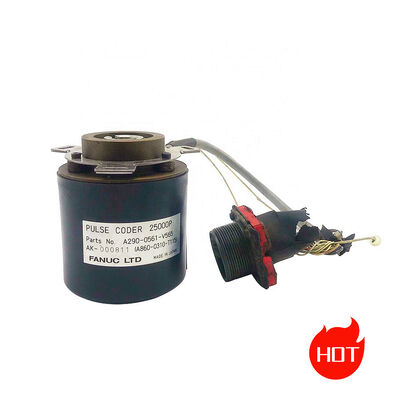

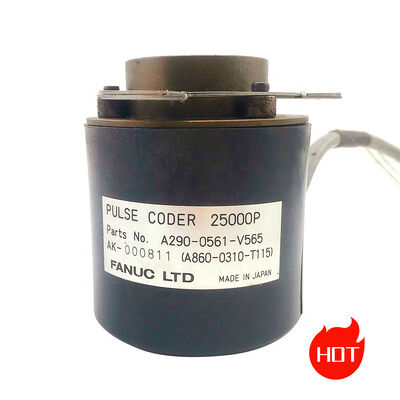

Fanuc High Resolution Encoder A290-0561-V565
20000 Line Serial Pulse Coder for CNC Machine - 220V 10A
Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 0 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 1 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 2 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 3 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 4 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 5
Product Overview
Genuine FANUC A290-0561-V565 high-speed, high-resolution serial encoder delivering 20,000 lines per revolution. After quadruple frequency processing, it achieves 80,000 counts per revolution, providing ultra-high-precision position feedback for CNC machine tools.
Key Features
  • 20,000 lines per revolution (20,000 lines/rev)
  • 80,000 counts per revolution after quadruple frequency
  • High-speed serial signal output
  • Maximum rated speed: 3,000 RPM
  • Output frequency up to 4 MHz
  • Standard mounting dimensions
  • Requires dedicated signal converter for FANUC CNC systems
  • Equivalent/compatible model: A860-0310-T021
Applications
Ideal for high-precision machining centers, high-speed contour machining, precision mold machining, high-finish surface cutting, and high-dynamic-response servo systems.
Technical Specifications
Model A290-0561-V565
Resolution 20,000 lines/rev (80,000 counts/rev)
Max Speed 3,000 RPM
Output Frequency Up to 4 MHz
Voltage 220V
Current 10A
Compatible Model A860-0310-T021
About Huiqin CNC
Huiqin CNC specializes in supplying reliable industrial automation components, including drives, modules, controllers, and PCBs. Our large Dongguan warehouse ensures fast availability across China. Every product undergoes strict functional and visual inspection.
Warranty: Used parts include a 3-month warranty; new parts carry 12-month quality assurance.
Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 6 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 7 Fanuc High Resolution Encoder A290-0561-V565 20000 Line Serial Pulse Coder CNC Machine 220V 10A 8
