Telesis TMC470 Industrial Dot Peen Controller – Durable Membrane Keyboard, Panel/Wall/Table-Top Mount, NEMA-Rated for Harsh Environments

Name: Telesis TMC470 Industrial Dot Peen Controller – Durable Membrane Keyboard, Panel/Wall/Table-Top Mount, NEMA-Rated for Harsh Environments
Brand: Dongguan Huiqin CNC Co.,Ltd.
SKU: TMC470
Price: 190 USD
Availability: InStock

Model Number:	TMC470
MOQ:	1pcs
Price:	190 usd
Payment Terms:	T/T
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Powersource:

Rechargeable Battery

Dimensions:

15 X 10 X 5 Cm

Material:

Plastic And Metal

Model:

TMC470

Color:

Black

Modelnumber:

OPHS-2024

Warranty:

1 Year

Shipping:

Free Worldwide Shipping

Productname:

Other Product Hot Sell

Category:

Electronics

Availability:

In Stock

Connectivity:

Bluetooth 5.0

Batterylife:

8 Hours

Packaging Details:

paper box

Highlight:

Telesis TMC470 industrial dot peen controller

Durable membrane keyboard dot peen controller

NEMA-rated dot peen controller for harsh environments

Product Description

Telesis TMC470 Industrial Dot Peen Controller

Durable Membrane Keyboard, Panel/Wall/Table-Top Mount, NEMA-Rated for Harsh Environments

Industry Standard for Reliable, High-Precision Marking Control

The Telesis TMC470 Controller is a self-contained, state-of-the-art dot peen marking controller designed to provide seamless, user-friendly control for high-efficiency marking operations. Engineered for demanding industrial environments, the TMC470 fixed-button dot peen controller delivers precise, customizable control over marking parameters, ensuring consistent, high-quality results every time.

Whether you are marking serial numbers, 2D codes, logos, or variable data on metal, plastic, or other materials, the Telesis PINSTAMP® TMC470 offers an unparalleled level of control, reliability, and efficiency. No PC is required - this fully contained industrial marking controller operates as a standalone unit, making it the ideal solution for streamlining high-volume production lines.

Key Features & Benefits

Self-Contained Operation: No PC required - fully standalone industrial marking controller with built-in user interface
Large Pattern Storage: Stores up to 400 marking patterns locally for quick recall and seamless job switching
Multiple Mounting Options: Can be installed as table-top, wall-mounted, panel-mounted, or enclosure-mounted unit

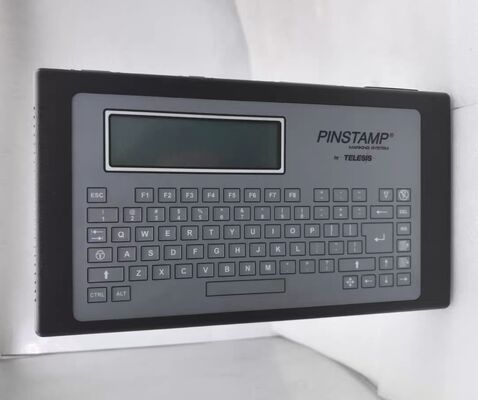

Durable Membrane Keyboard: Industrial-grade membrane keypad designed for reliable operation in harsh environments
Optically Isolated I/O: 12 to 24 VDC optically isolated I/O ports for direct connection to PLCs and other DC I/O sources
Automatic Data Generation: Automatically generates serial numbers, date, time, and shift codes
Merlin® Software Compatible: Fully compatible with Telesis' powerful Merlin® marking software for intuitive pattern design and management

Technical Specifications

Feature	Specification
Marking Patterns	Up to 400 local patterns
Communications	TTL, Discrete I/O, RS232, RS485, TCP/IP, USB
Industrial Protocols	Ethernet/IP and PROFINET capable
Input Signals	12 total, optically isolated (8 dedicated, 1 programmable, 3 available)
Output Signals	6 total, optically isolated (4 dedicated, 2 available)
Power Requirements	95 to 250 VAC, 2 amps, 50-60 Hz, single phase
Operating Temperature	32°F to 122°F (0°C to 50°C)
Weight	3.69 lb (controller only)

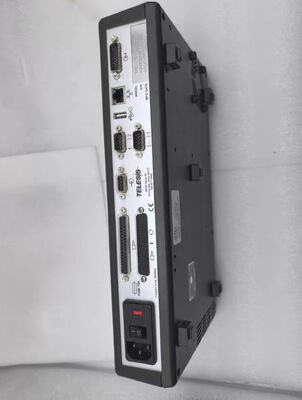

Connectivity & Integration

Seamless Integration with Your Existing Automation Infrastructure

The TMC470 dot peen controller is designed for maximum integration flexibility. It features:

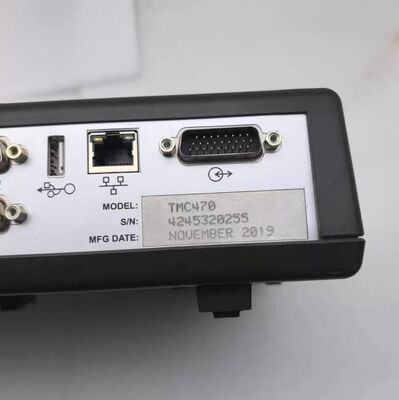

Ethernet port for TCP/IP communications over local area networks (LAN)
Two serial ports (RS232 and RS485) for long-distance transmission or multi-drop networks of up to 31 TMC470 controllers
USB port for pattern file backup and data transfer
Ethernet/IP and PROFINET industrial protocol support for seamless PLC integration

The TMC470 can be easily interfaced with Programmable Logic Controllers (PLCs), host computers, barcode scanners, and other remote devices. The optically isolated I/O port allows you to remotely select and load patterns, start printing, stop printing, place the marker online, and monitor system output signals.

Applications

Ideal for a Wide Range of Industrial Marking Applications

Automotive Manufacturing
VIN marking, part identification, traceability codes

Aerospace
Permanent part marking for compliance and traceability

Medical Device Manufacturing
UDI (Unique Device Identification) marking

Defense
UID (Unique Identification) compliant marking

General Industrial
Deep alphanumeric and 2D code marking on metals and plastics

High-Volume Production Lines
Fast, reliable marking with minimal downtime

Why Choose Telesis TMC470?

No PC Required: Fully self-contained dot peen controller reduces system complexity and cost
Industrial-Grade Durability: Built to withstand the rigors of demanding industrial settings
Precision Control: Adjust marking depth, speed, and layout with pinpoint accuracy
High-Volume Ready: Store up to 400 patterns and switch jobs instantly
Flexible Integration: Supports Ethernet/IP, PROFINET, RS232, RS485, TCP/IP, and USB

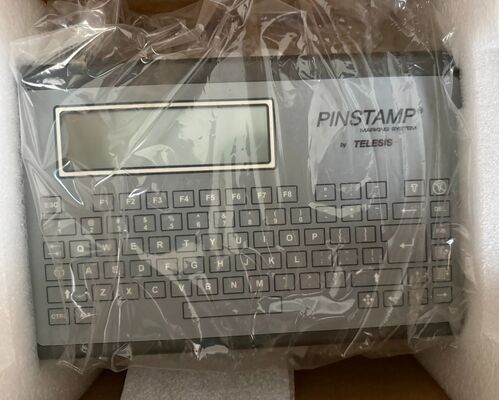

Brand New: Factory-fresh unit, ready to ship

Get Your Telesis TMC470 Dot Peen Controller Today!

Condition: Brand New / Factory Sealed

Availability: In Stock - Ready to Ship

Warranty: Manufacturer Warranty Included

Contact us for bulk pricing and wholesale inquiries.

"The TMC470 provides an unparalleled level of control, reliability, and efficiency for manufacturers looking to streamline operations, reduce downtime, and achieve flawless, repeatable marks."
